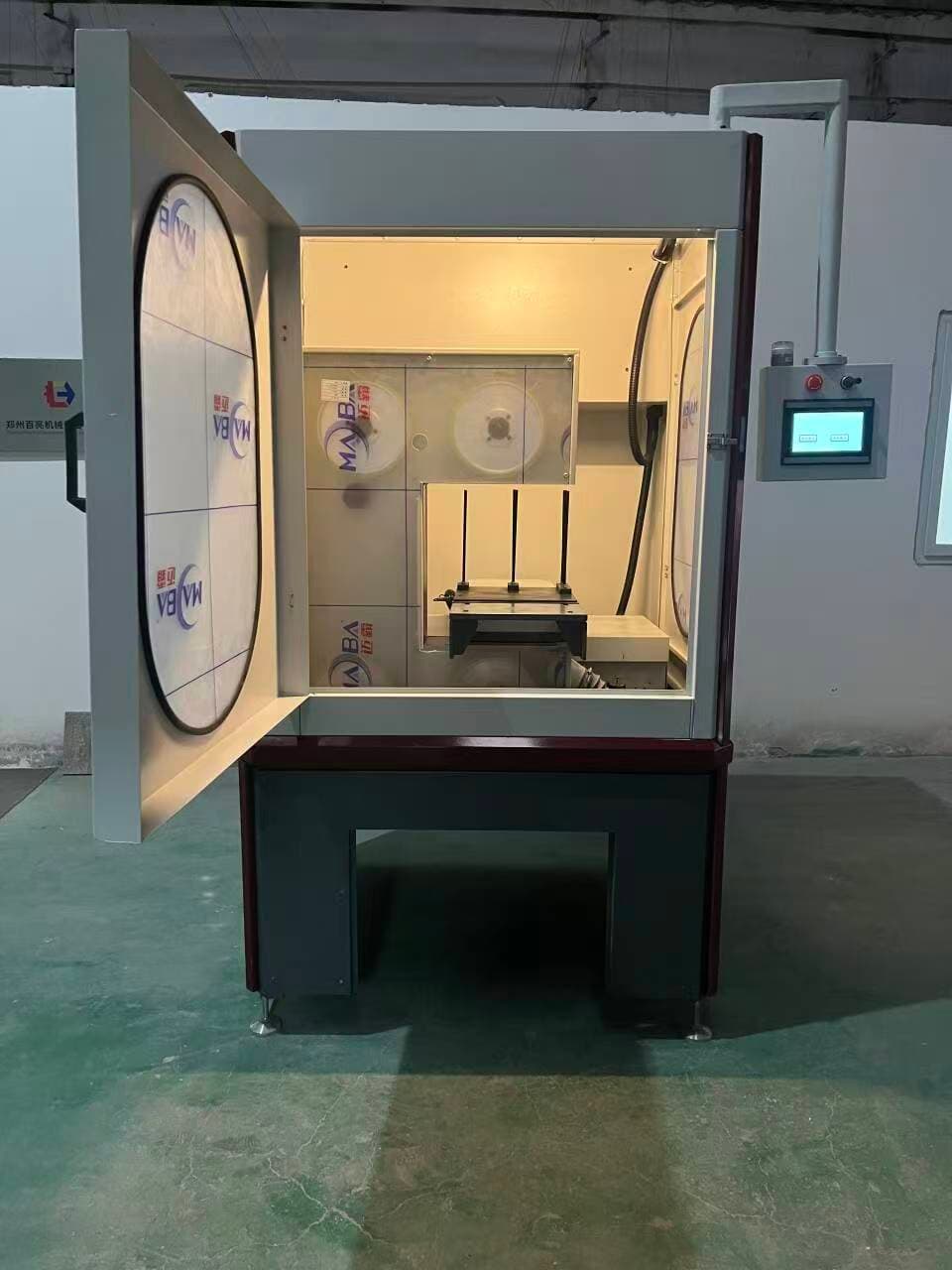

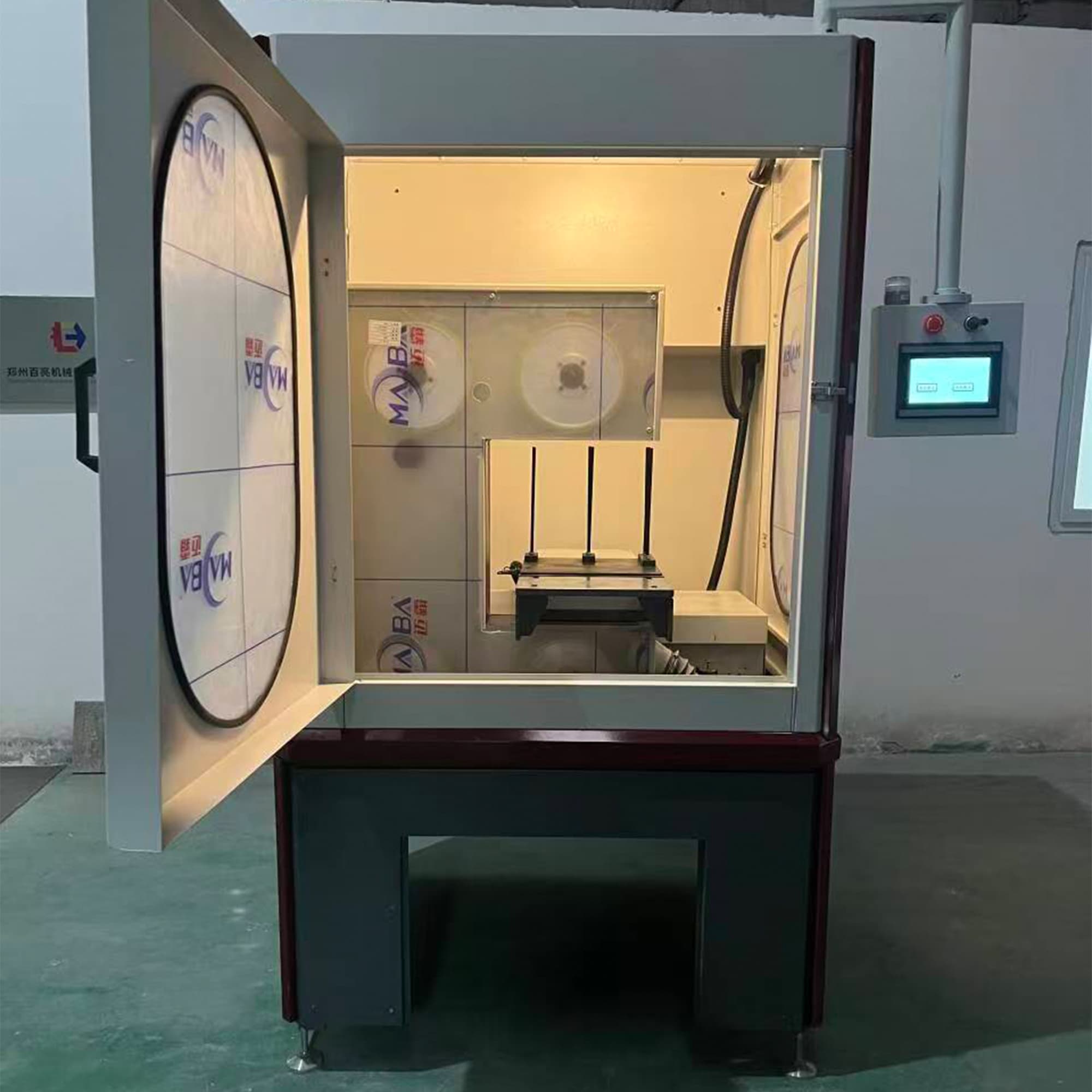

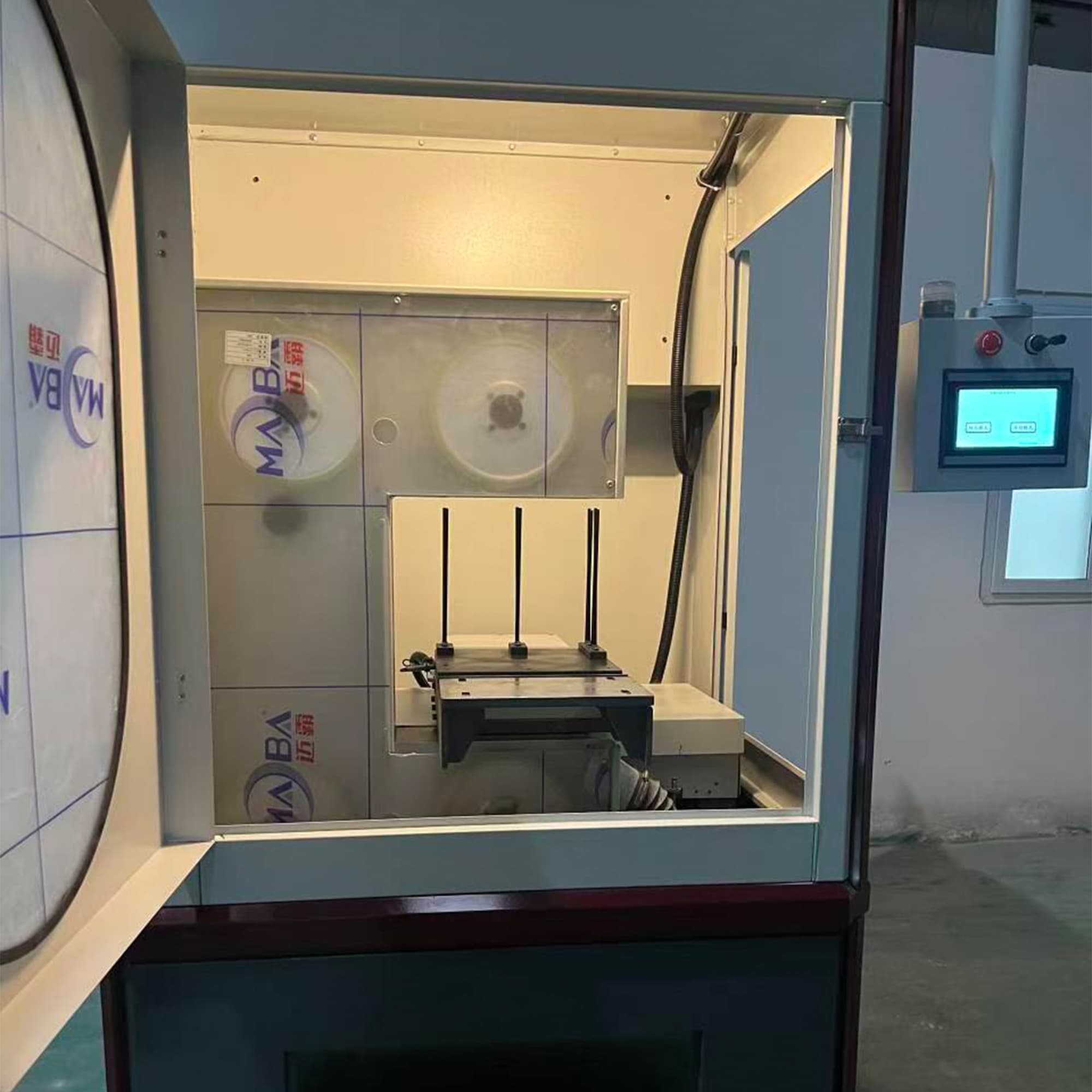

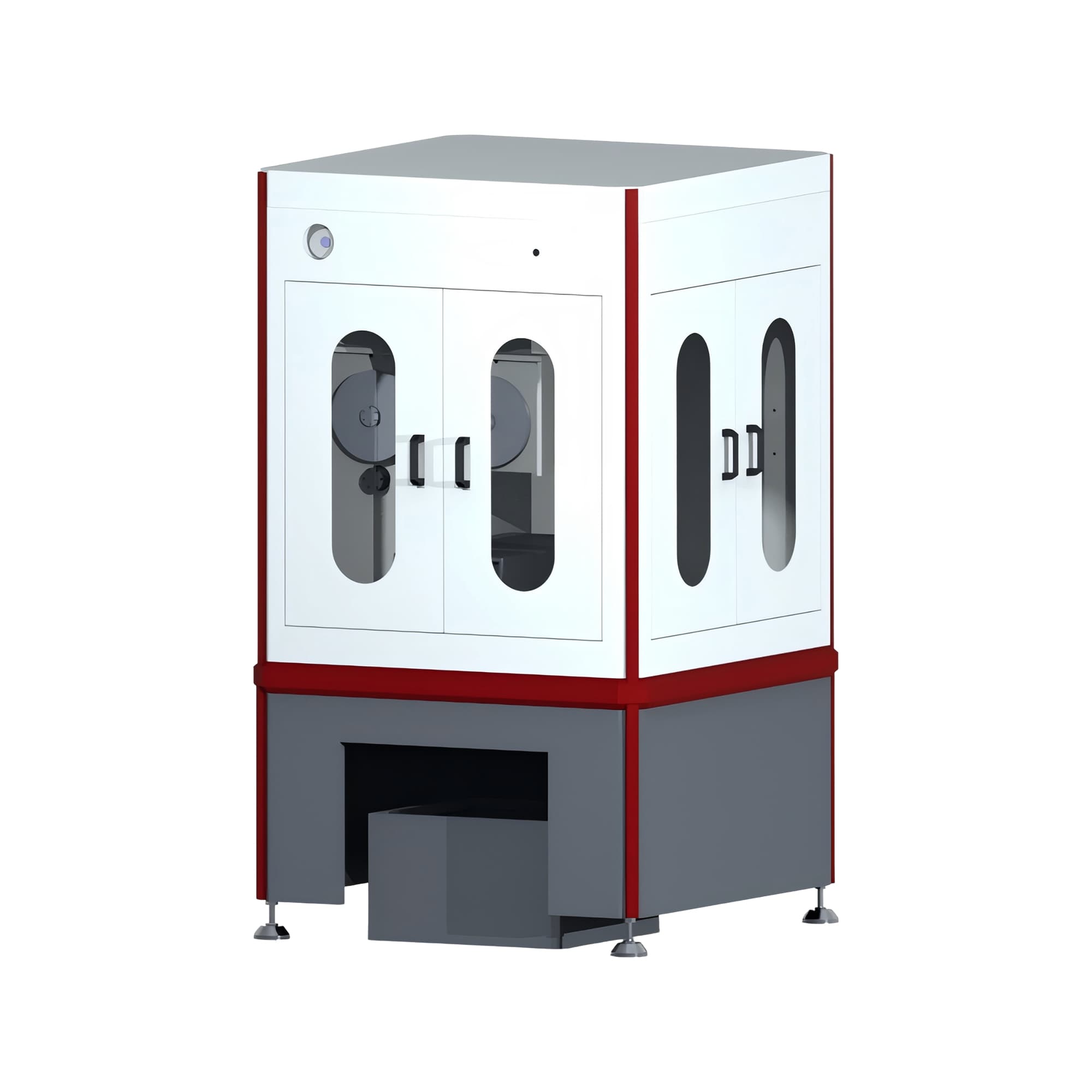

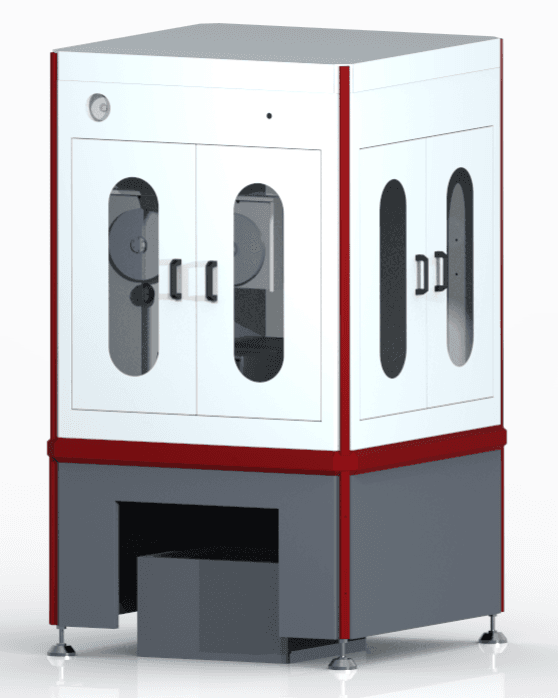

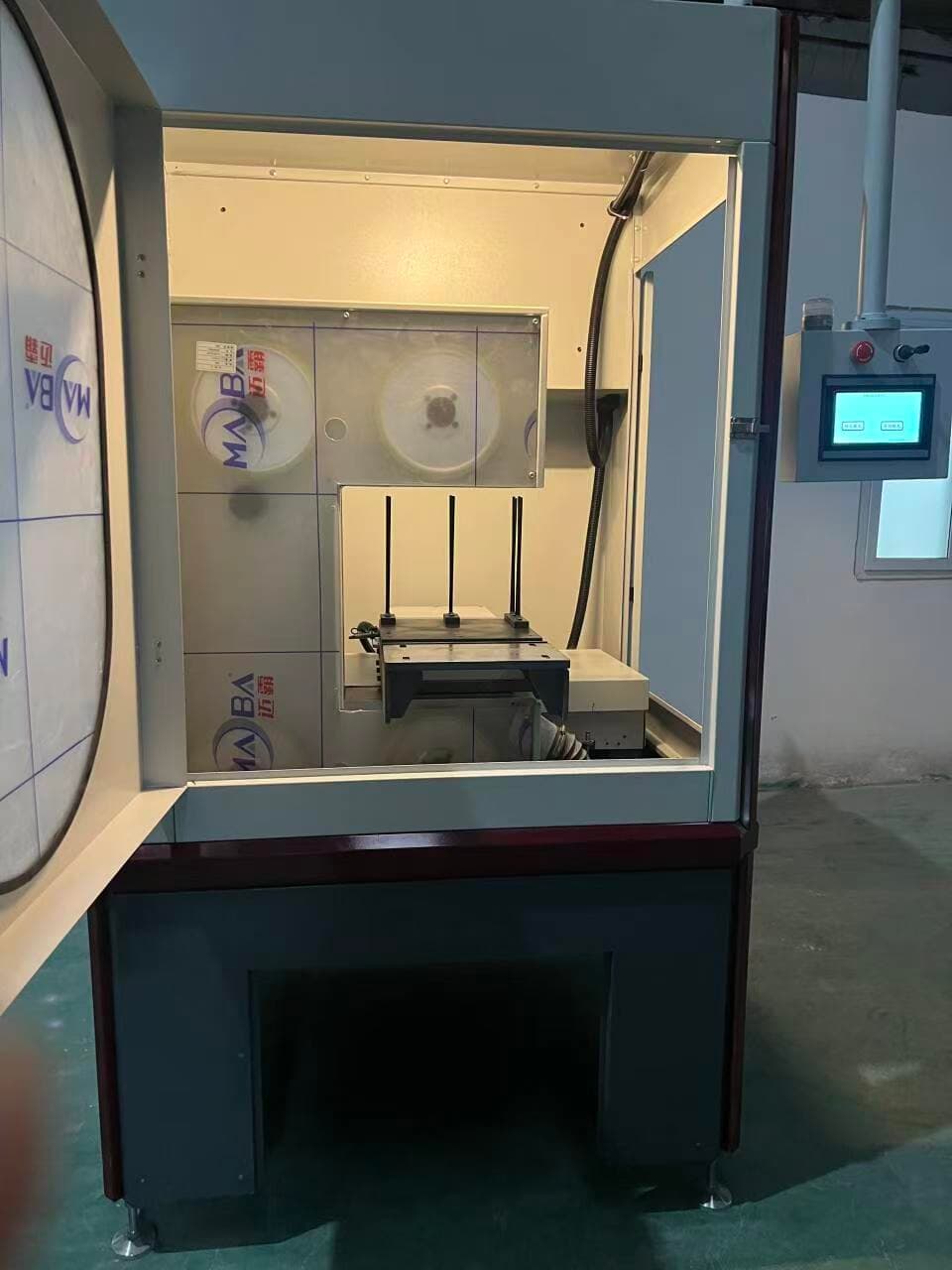

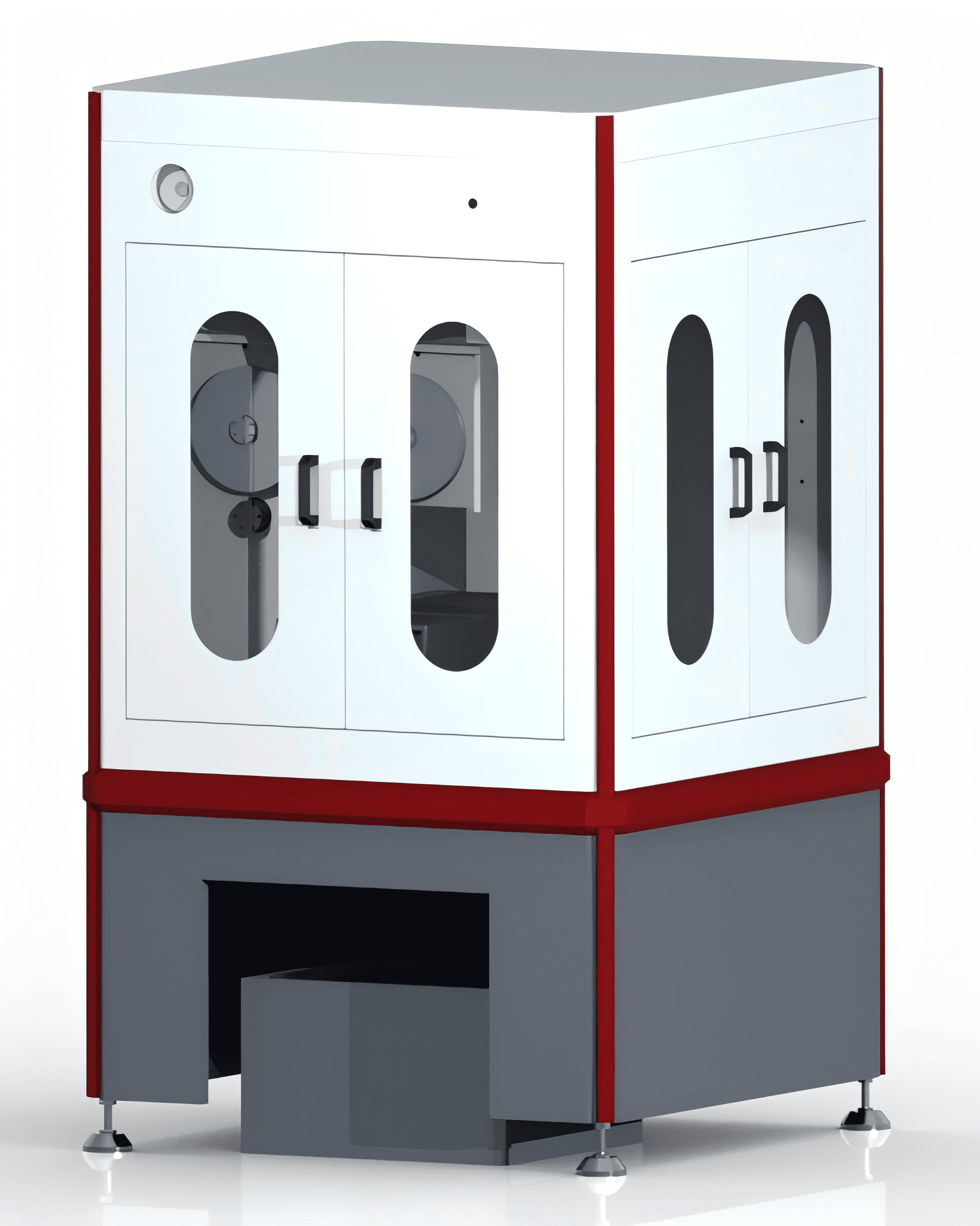

Vertical‑cut Contour Diamond Wire Cutting Machine （BL-LQYX300）

Built around the workpiece

The vertical‑cut contour diamond wire cutting machine adopts a vertical cutting structure and supports CAD graphic parsing to realize special‑shape cutting of complex contours such as circular arcs and inclined surfaces. Equipped with high‑precision linear guides and ball screws, the machine features sensitive feed response. Combined with a dynamic constant‑tension wire‑tensioning mechanism, it stabilizes diamond wire tension in real time, effectively lowering wire‑breakage risk and suppressing workpiece edge chipping, so as to guarantee dimensional accuracy for complex‑contour machining. With sound structural rigidity and low operating vibration, it can process various hard‑to‑cut brittle substrates including silicon carbide, graphite, special ceramics and composite materials. It is capable of small‑batch R&D sample preparation as well as forming processing for industrial non‑standard parts. It delivers narrow kerf, low material loss and favorable cut‑surface quality to reduce subsequent grinding procedures. Cutting speed and wire‑running parameters can be flexibly adjusted for different materials, meeting customized processing demands for special‑shaped parts in new‑material, semiconductor and carbon‑product industries.

Series

BL-LQYX

Category

Vertical‑cut Contour Diamond Wire Cutting Machine

Minimum order

1 machine

Model

BL-LQYX300

• CAD contour data drives the wire path
• Vertical cutting format
• Automatic constant-tension control
• Touchscreen control panel
